All these camera features are possible only in TRIUMPH-LS where camera, and GNSS antenna are co-located and all other modules integrated.

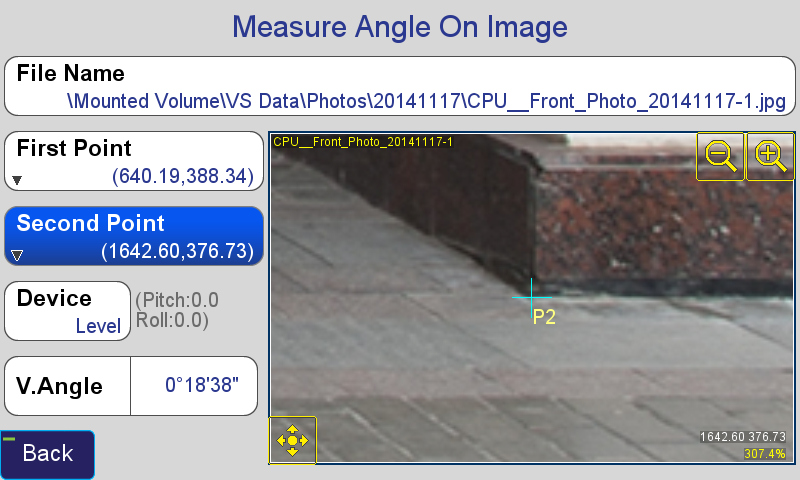

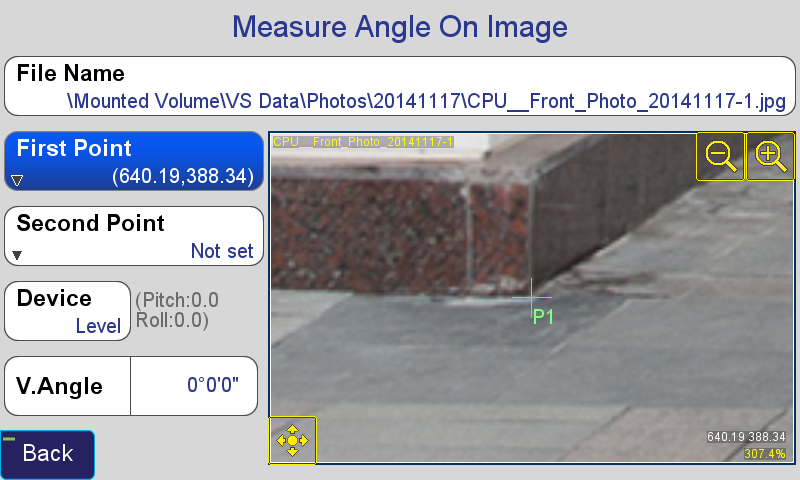

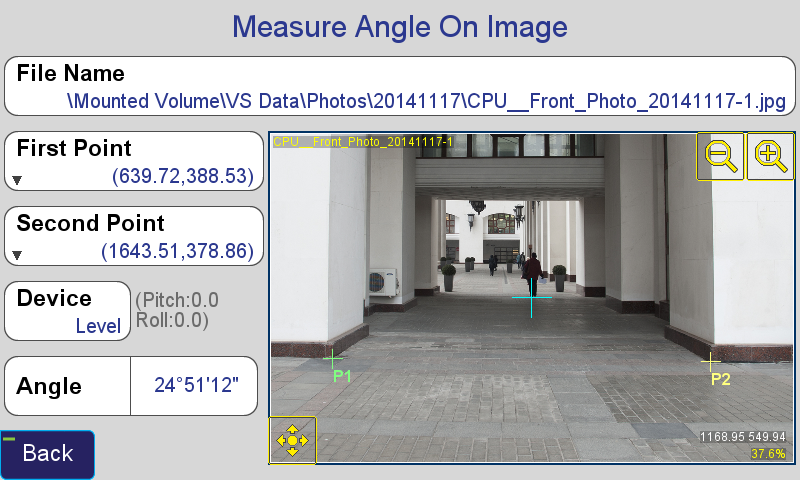

Visual Angle Measurement with Triumph-LS

The new Visual Angle Measurement function of the TRIUMPH-LS allows measuring angles between points by using photos taken by the TRIUMPH-LS camera and use in CoGo tasks with the Accuracy of about 10 angular minutes.

To measure an angle:

• just take an image containing both objects of interest and open it
  in the Measure Angle screen
• select first and second point (using zoom to focus on necessary features)
• The angle between points is immediately displayed on the screen.

View and Document your level

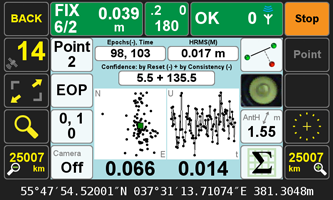

The downward camera of TRIUMPH-LS scans and finds the liquid bubble level mounted on the pole. Then focuses on the circular bubble automatically and shows its image on one of the eight white buttons of the Action Screen.

You can:

• View the liquid bubble level on the screen.
• Document survey details including the leveling by taking automatic screen shots of the Action Screen, as shown here.
• Calibrate the electronic level of TRIUMPH-LS with the liquid bubble level for use in Lift and Tilt and automatic tilt corrections.

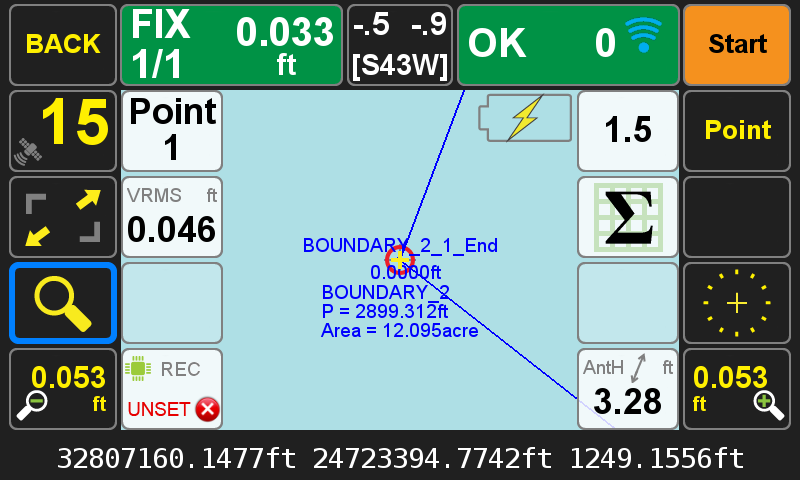

Store and Stake like never before

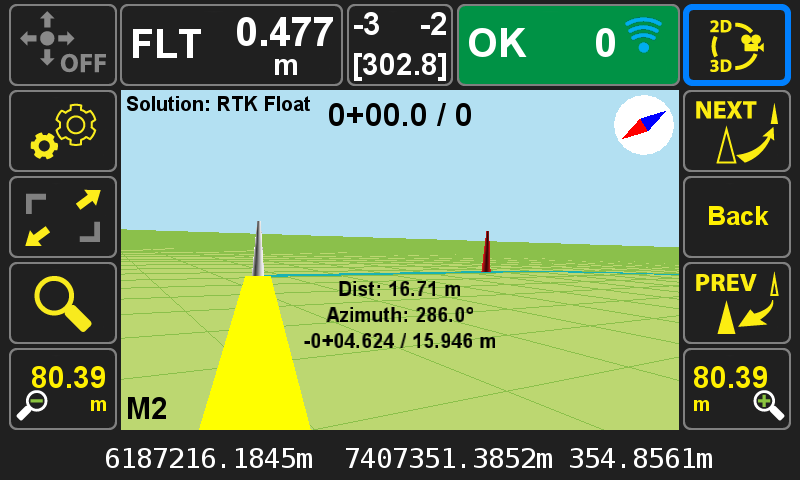

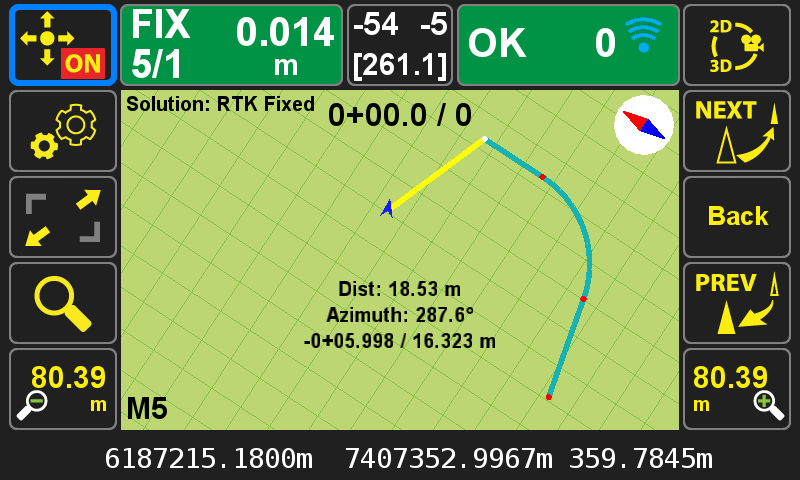

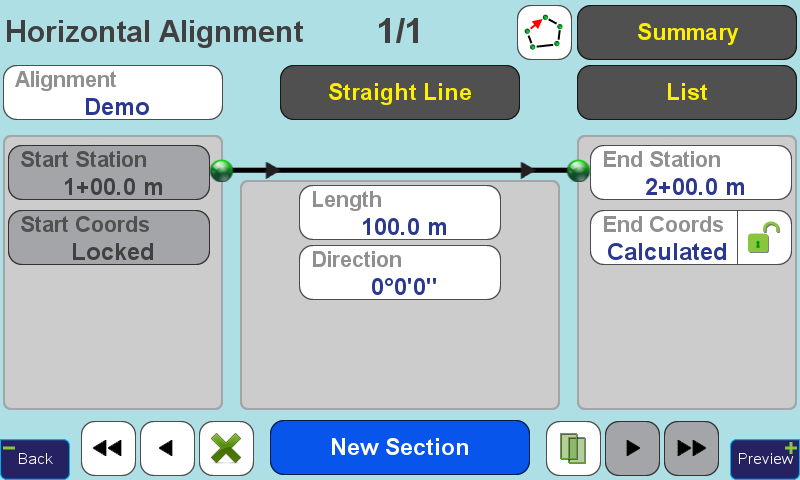

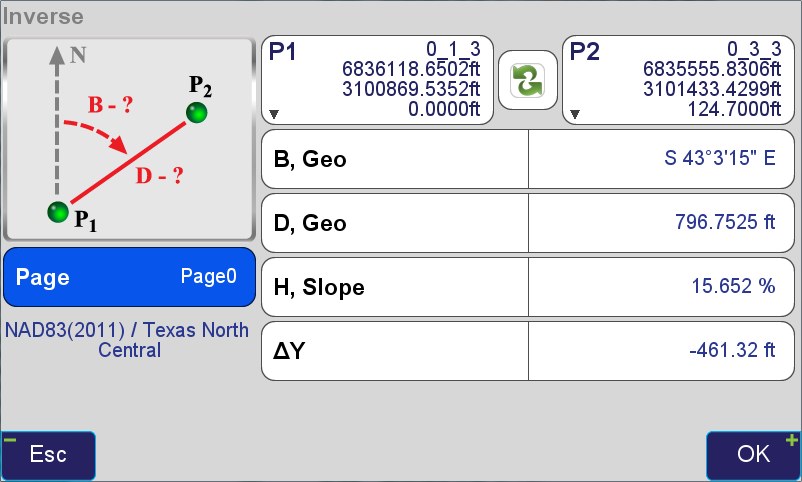

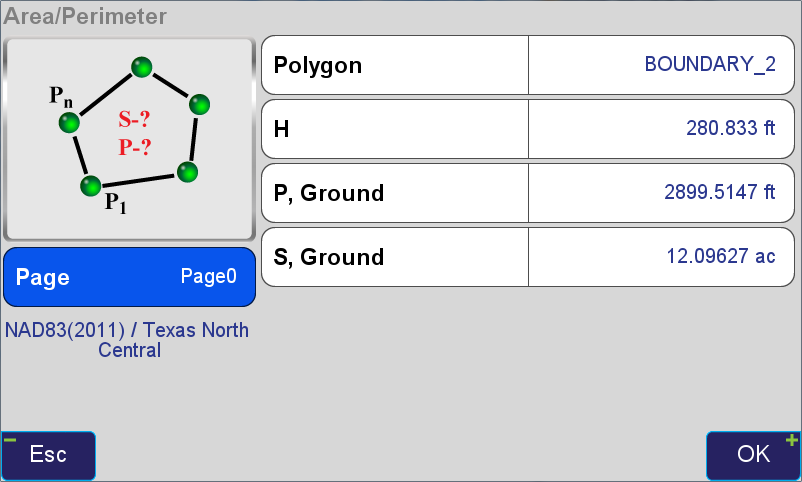

Introducing GUIDE data collection in the TRIUMPH-LS. Visual Stake-out, navigation, six parallel RTK engines, over 3,000 coordinate conversions, advanced CoGo features, rich attribute tagging on a high resolution, large, bright 800x480 pixel display.

Versatile attribute tagging, feature coding and automatic photo and voice documentation.

The TRIUMPH-LS automatically updates all firmware when connected to a Wi-Fi internet connection.

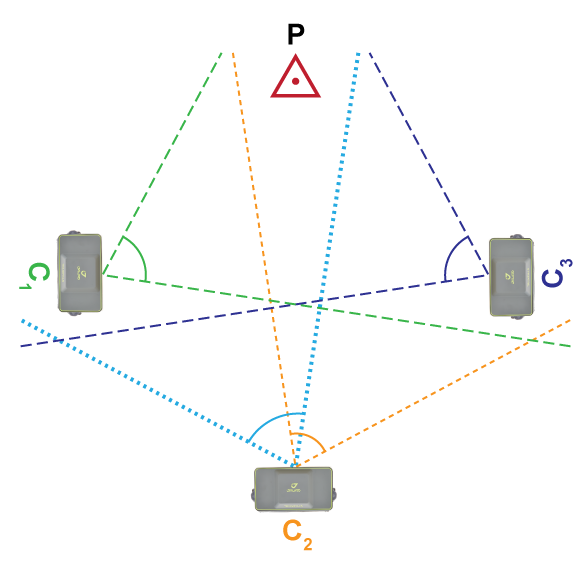

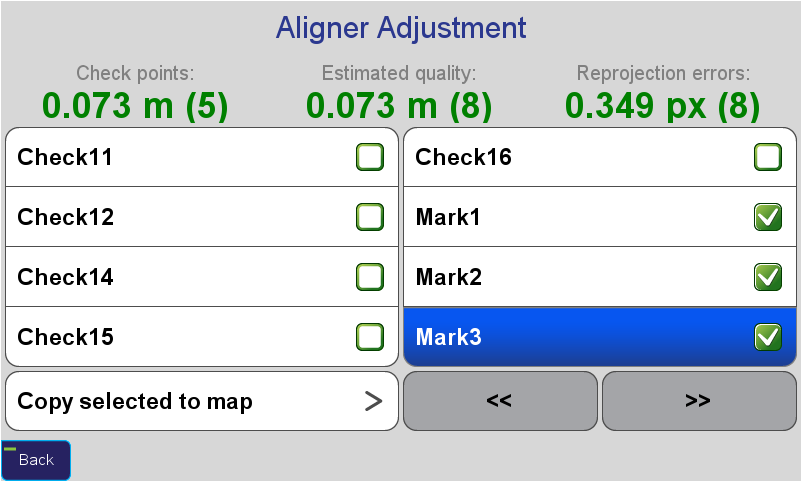

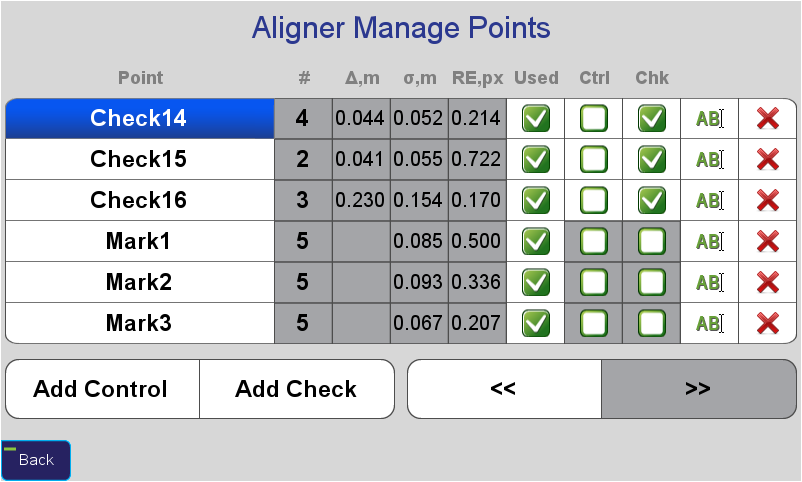

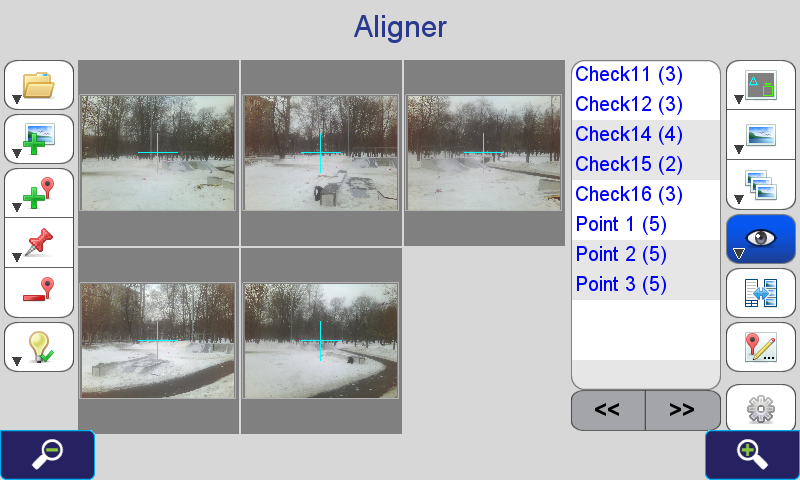

Offset Survey with Photogrammetry

Offsets can be calculated using the internal camera of the TRIUMPH-LS or with an external camera!
