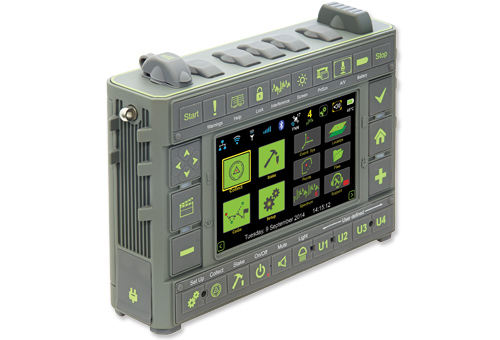

Victor-LS is powerful, waterproof, and versatile new generation of rugged and modern field controllers. It automatically connects to JAVAD GNSS receivers via its internal Bluetooth and guides you through field operations.
Thanks to the advanced technology and large active screen, the work with Victor-LS can be performed efficiently and conveniently as possible.The intuitive and simple software interface allows you to perform any work accurately,without mistakes and with maximum performance.
| ARM MPU | DM3730 Up to 1-GHz ARM® Cortex™-A8 Core; 1GB RAM |
| Operating System | Microsoft Windows Embedded Compact 7 |
| SD card slot | High Capacity microSD Card (microSDHC) up to 64GB; user accessible, fully sealed |
| Display | Active matrix color TFT LCD Module; Diagonal 4.3"; 800х480 pixels |
| Touchscreen | Low reflective resistive touch panel |
| Buttons | Navigation button Home - main screen Action button Zoom -/Zoom + Enter (Ok) button - activates enter function Three user programmable buttons On/Off button Ten quick access button |
| LED Indication | Battery charging status, battery status, sleep mode, warning status |
| Enunciators | Four LEDs: battery charging status, battery status, sleep mode |
| Voice recorder | integrated |
| Audio Output | integrated |
| Photo Camera | 3-megapixel camera |
