DeltaS-3S

DeltaS-3S
High-Precision GNSS Enclosure

New DELTA, with 3rd-Gen TRIUMPH

874 GNSS Channels, QZSS L6

DeltaS-3S is a powerful and reliable receiver built on the latest-generation TRIUMPH technology from JAVAD.

874 channels and the latest anti-jamming, anti-spoofing, and multipath-reduction technologies put DeltaS-3S ahead of the competition.

Designed for High-Precision Applications

Navigation
Post-processing receiver
Continuously Operating Reference Station (CORS)
Portable RTK base station
Survey and geodynamics
Machine and traffic control
Aerogeophysics
Collecting information for scientific studies
And more…

Two simple configurations to meet your needs

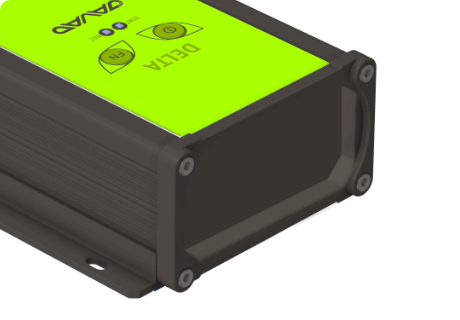

Reference Station

Back panel configuration:

Blank

BUY THIS OPTION

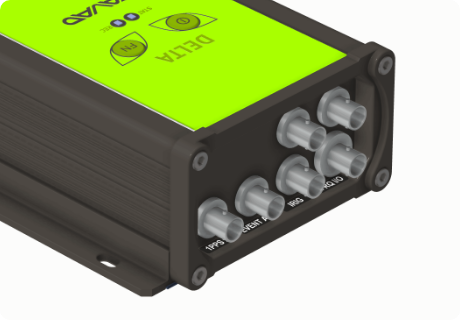

Mobile Applications

Back panel configuration:

Top Row

1PPS B
Event B

Bottom Row

1PPS A
Event A
IRIG
Ext. Frequency I/O

BUY THIS OPTION

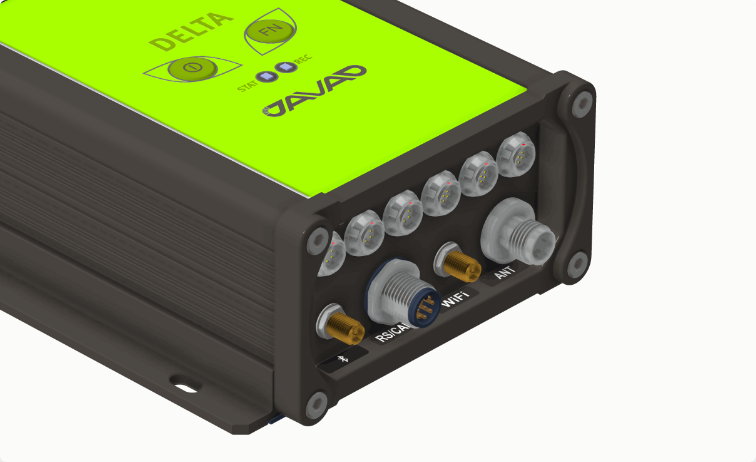

Standard Features

All configurations come standard with the following front panel ports:

Top Row

Power (Main)
Power 2 (Secondary)
USB
Serial Port A
Serial Port C
Ethernet

Bottom Row

Bluetooth Antenna
Serial Port D / CAN / Power Out
WiFi Antenna
GNSS Antenna

More Details

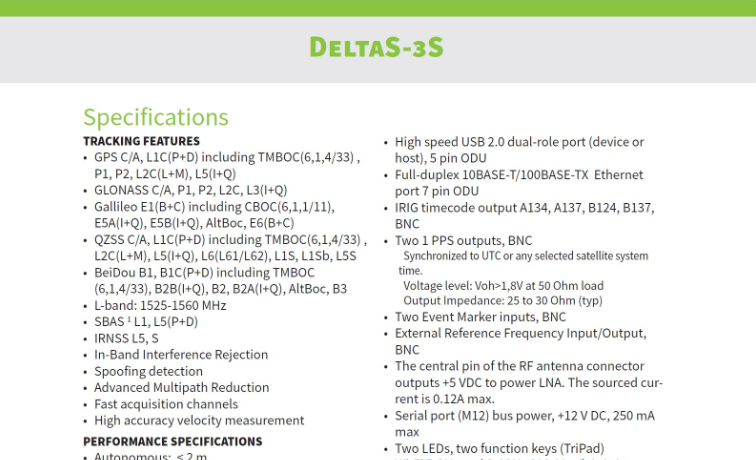

Full details and specifications can be found in the datasheet below. Our sales team is ready to answer any further questions you may have about how DeltaS-3S can fit your needs.

DOWNLOAD DATASHEET

CONTACT SALES

Easy Management

NetView & Modem is a free application for easy control of JAVAD GNSS TRIUMPH-3 receivers, allowing efficient remote management of receiver parameters and commands via a user friendly interface.

DOWNLOAD NETVIEW & MODEM

TRIUMPH-3 Inside

DeltaS-3S is powered by the 3rd generation of JAVAD's unparalleled custom-designed TRIUMPH ASIC.

874 Channels, improved Fast Acquisition, Anti-Jam filters, and many other features are built into this smaller package that uses ~55% of the power of the prior generation!

SEE MORE ABOUT OUR CUSTOM ASIC
