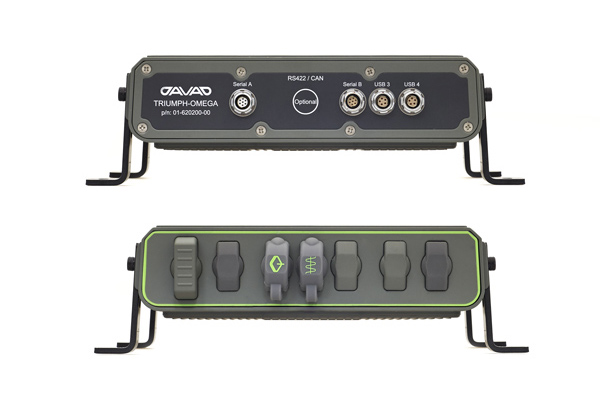

OMEGA

OMEGA is the most advanced GNSS receiver. It does not include integrated antenna and controller. It is suited for applications like machine control and in marine and avionics applications. Adding GrAnt and any controller with J-Mobile makes a complete RTK systems. It is well suited for monitoring and network stations.

OMEGA OMEGA

Main Features

  • GPS L1/L2/L2C/L5
  • GLONASS L1/L2/L3
  • QSZZ, QZSS LEX
  • Galileo E1/E5A/E5B/E6
  • BeiDou B1/B2/B3
  • WAAS/EGNOS/MSAS (SBAS)
  • Update rate 1Hz, 5Hz, 10Hz, 20Hz, 50Hz, 100Hz
  • RTK rate 1Hz, 5Hz, 10Hz, 20Hz, 50Hz, 100Hz
  • Real-time Data Input/Output JPS, RTCM SC104 v. 2.x and 3.x, CMR
  • Real-time Data Output NMEA 0183 v. 2.x and 3.0, BINEX, RINEX
  • RAIM
  • Data recording up to 16GB
  • IEEE 1588 protocol support

  • In-Band Interference Rejection
  • Multi-Base Code Differential Rover
  • Code Differential Base
  • Advanced Multipath Reduction
  • Event marker
  • 1 PPS timing strobe
  • CAN port
  • External Reference Frequency Input/Output
  • Up to 2 high-speed RS232/RS422 serial port
  • USB port
  • Ethernet
  • WiFi 5 GHz and 2.4 GHz
  • Bluetooth and Bluetooth LE
  • Internal 4G LTE Mini Card
  • Internal Radio Modem
  • External GNSS Antenna TNC Female connector
