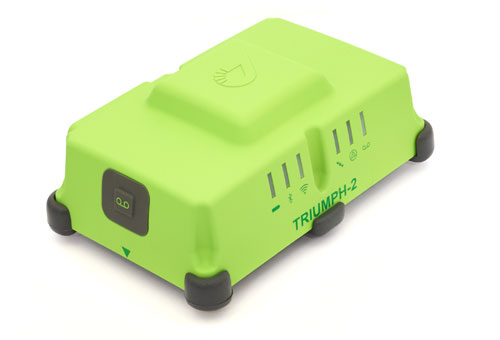

The revolution in size, function and GPS scalability!

The TRIUMPH-2 brings rugged, scalable, affordable, best-in-class GNSS performance to every application. TRIUMPH-2 is based on our TRIUMPH Technology implemented in our TRIUMPH Chip. We offer very powerful GIS field mapping receiver with up to 100 Hz RTK, 216 channels of dual frequency GPS and GLONASS in a small attractive, sturdy, and watertight box. Using its internal Bluetooth and WIiFi connection the receiver can access local GNSS Reference Station Network. In addition to post-processed DGPS capabilities, the TRIUMPH-2 utilizes external correction services for real-time DGPS mapping and navigation applications.

Total 216 channels: all-in-view (GPS L1/L2, GLONASS L1/L2, GALILEO E1, BeiDou B1, QZSS L1/L2, SBAS L1) integrated receiver

Main Features GPS C/A, P1, P2, L1C (P+D), L2C (L+M) GLONASS C/A, L2C, P1, P2 Galileo E1 (B+C) BeiDou B1, B1C(P+D) QZSS C/A, L1C(I+Q), L1S, L2C (L+M) SBAS L1 KFK WAAS/EGNOS (SBAS) Data Recording up to 2GB RAIM USB Multi-Base Code Differential Rover Advanced Multipath Reduction Internal GNSS Antenna Bluetooth® and WiFi Interface Internal Bluetooth/WiFi Antenna Internal Rechargeable Li-Ion Battery

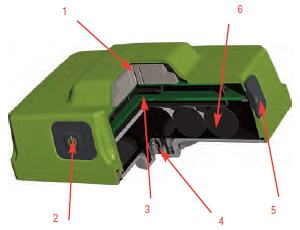

GNSS Antenna On/Off button GNSS Receiver, power board with Bluetooth, WiFi, and on-board Memory 1/4-20" Mounting Thread Record button Rechargeable Li-Ion battery pack
