ALPHA is based on patented JAVAD technology implemented in our TRIUMPH ASIC.
For the first time in GNSS history we offer up to 100 Hz RTK.



874 channels of dual frequency GPS, Galileo, GLONASS, BeiDou, QZSS and IRNSS when built with TR-2S or TR-3S; 216 channels of single or dual frequency GPS, Galileo and GLONASS when built with TR-G2. All in a small, IP66-rated enclosure that meets MIL standards for humidity, shock and vibration.

The on-board power supply accepts any voltage from +7 to +40 volts and delivers clean filtered power where needed. This eliminates the risk of power contamination (ripples) that can be created when clean power is generated externally and delivered to the board via cables. ALPHA also includes a TriPad (two LEDs, ON/OFF, and function buttons) interface, GSM module, Bluetooth® wireless technology, and a rechargeable battery. In addition, the receiver comes with a large amount of flash data storage. Simply stated, additional functions are not needed to incorporate ALPHA in most applications.

Standard Configuration

  • TR-2S or TR-3S or TR-G2
  • (Refer to the OEM board datasheets for full GNSS specifications)
  • RAIM
  • TriPad Interface
  • RS232 Serial Port (460.8 kbps)
  • External GNSS Antenna TNC Female connector
  • Rechargeable Li-Ion Battery

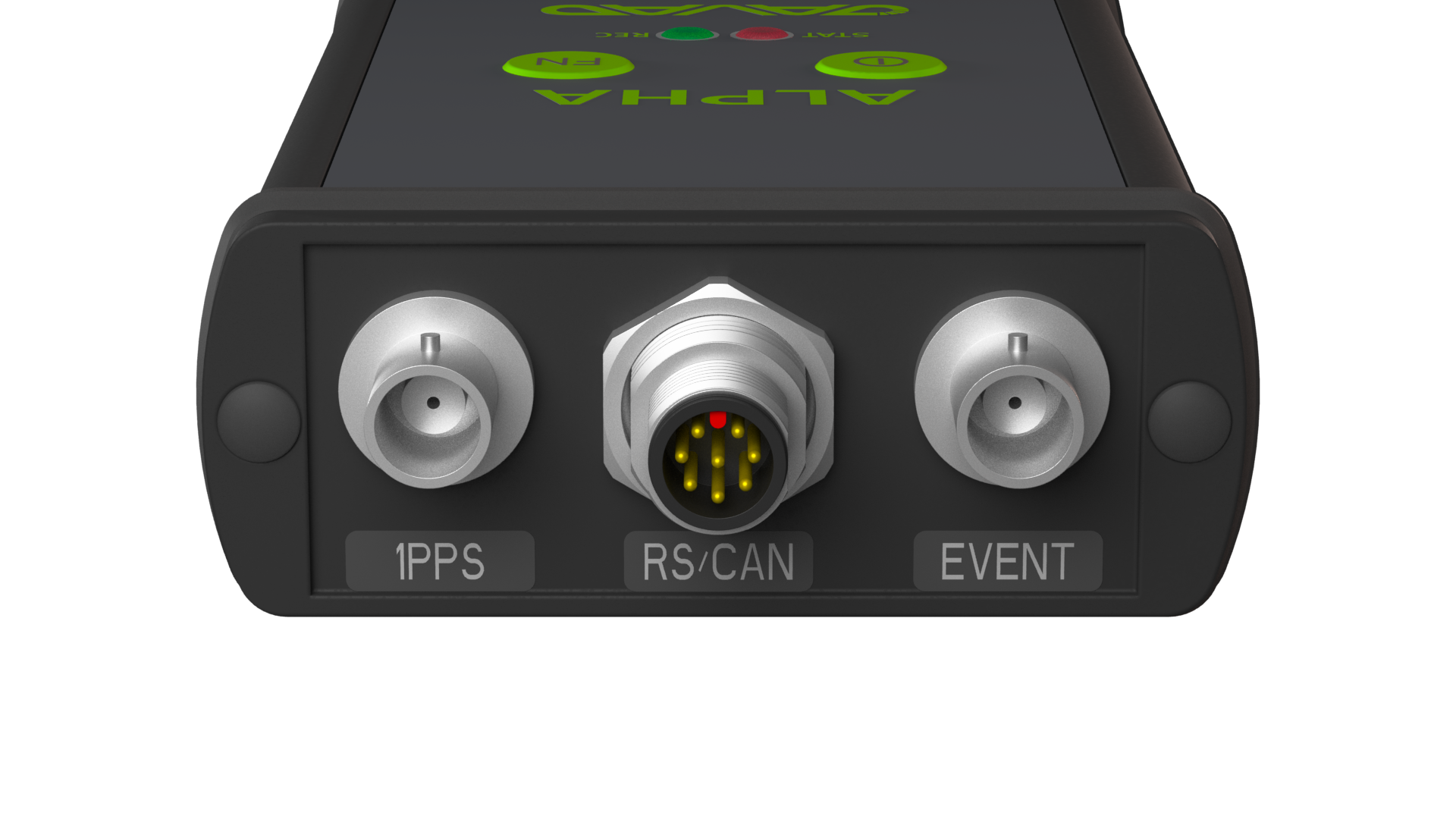

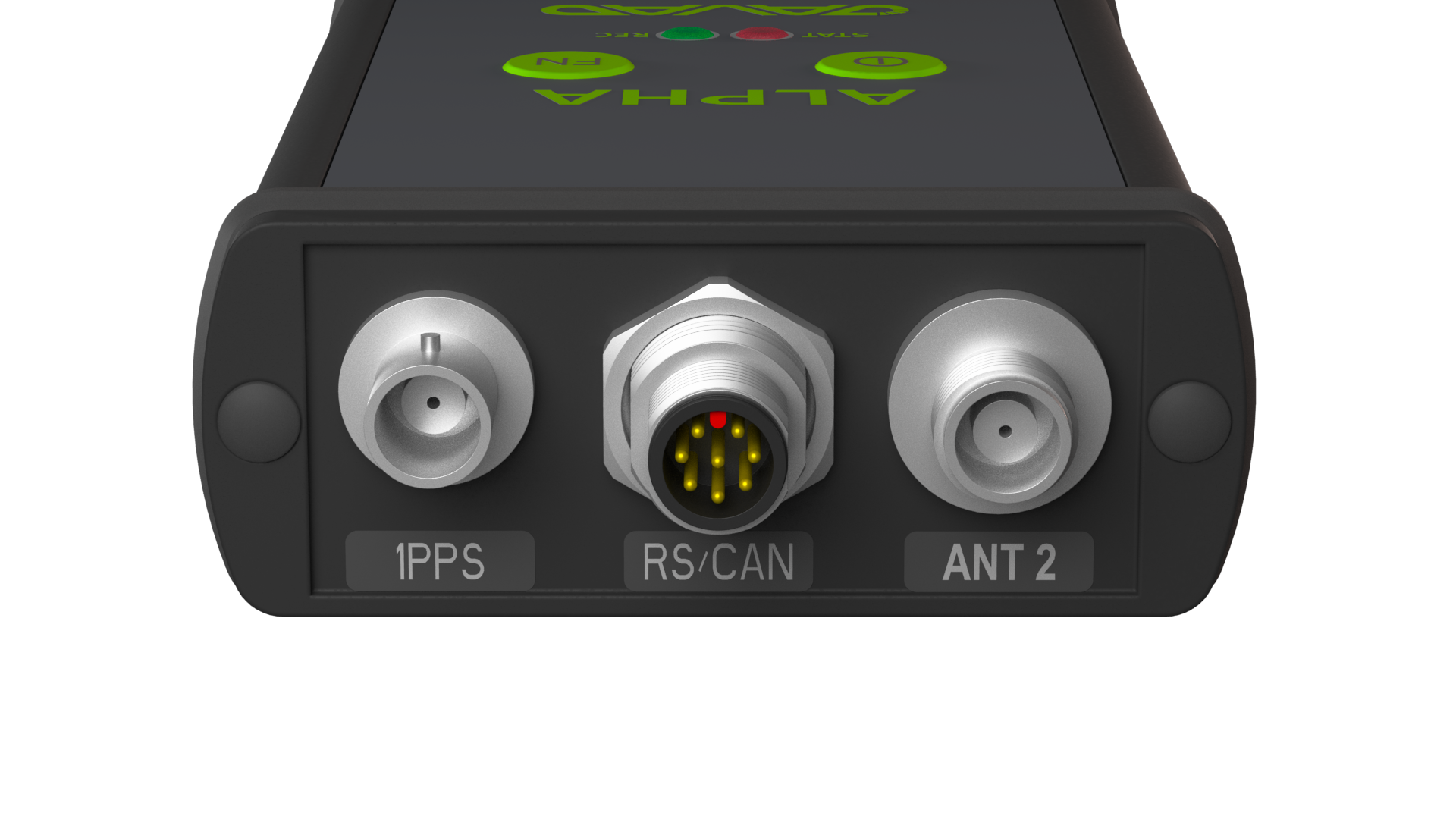

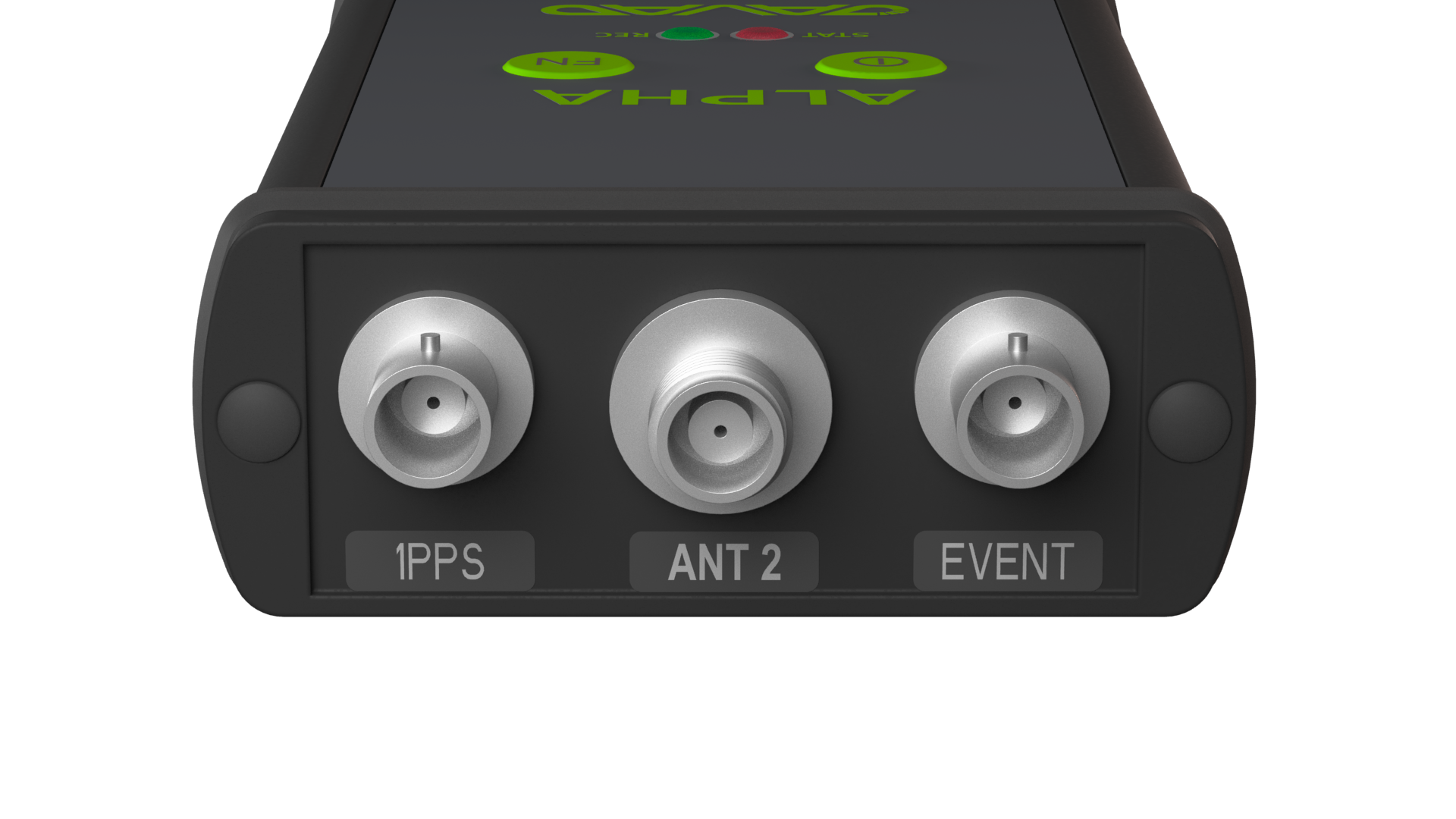

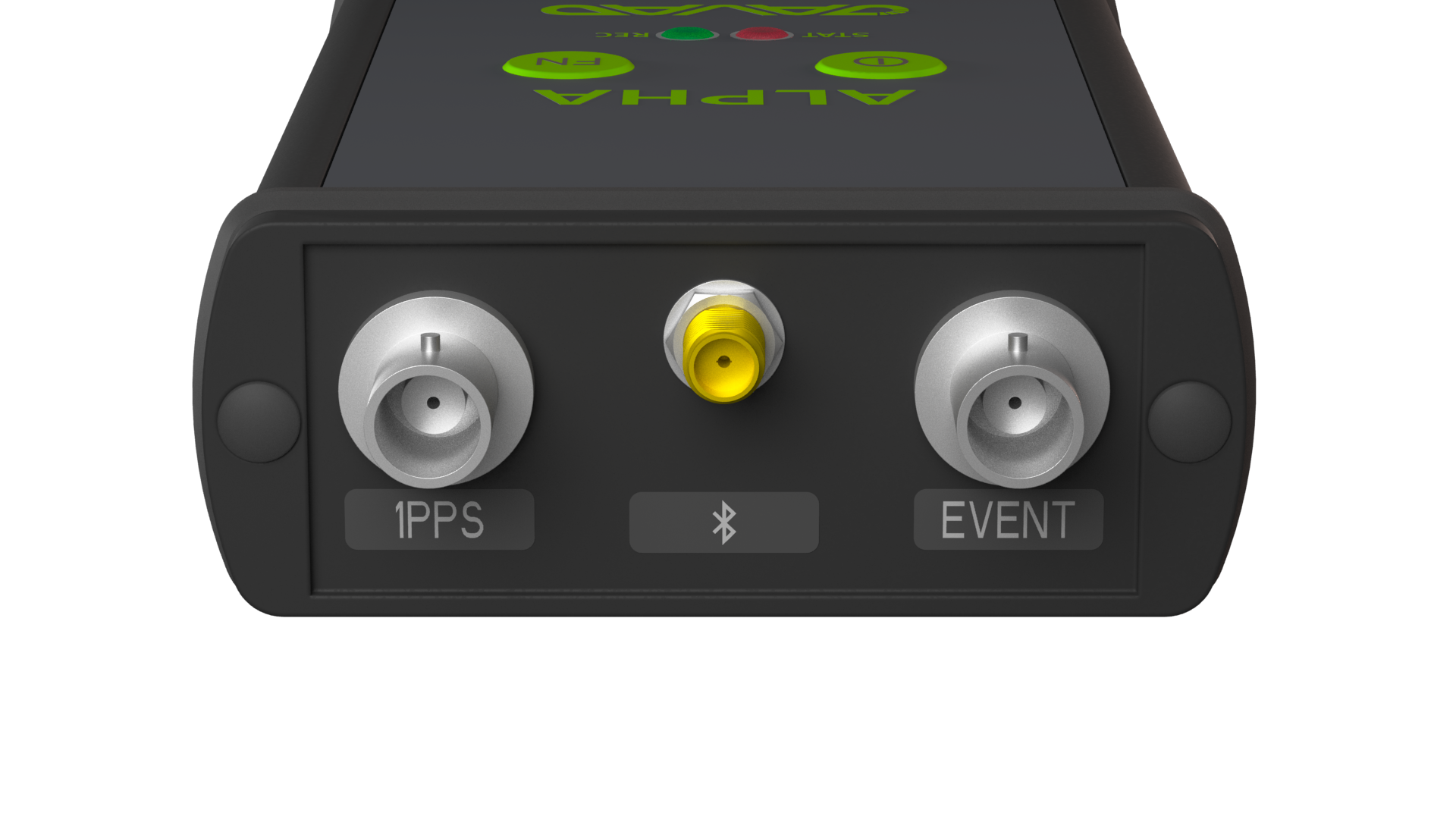

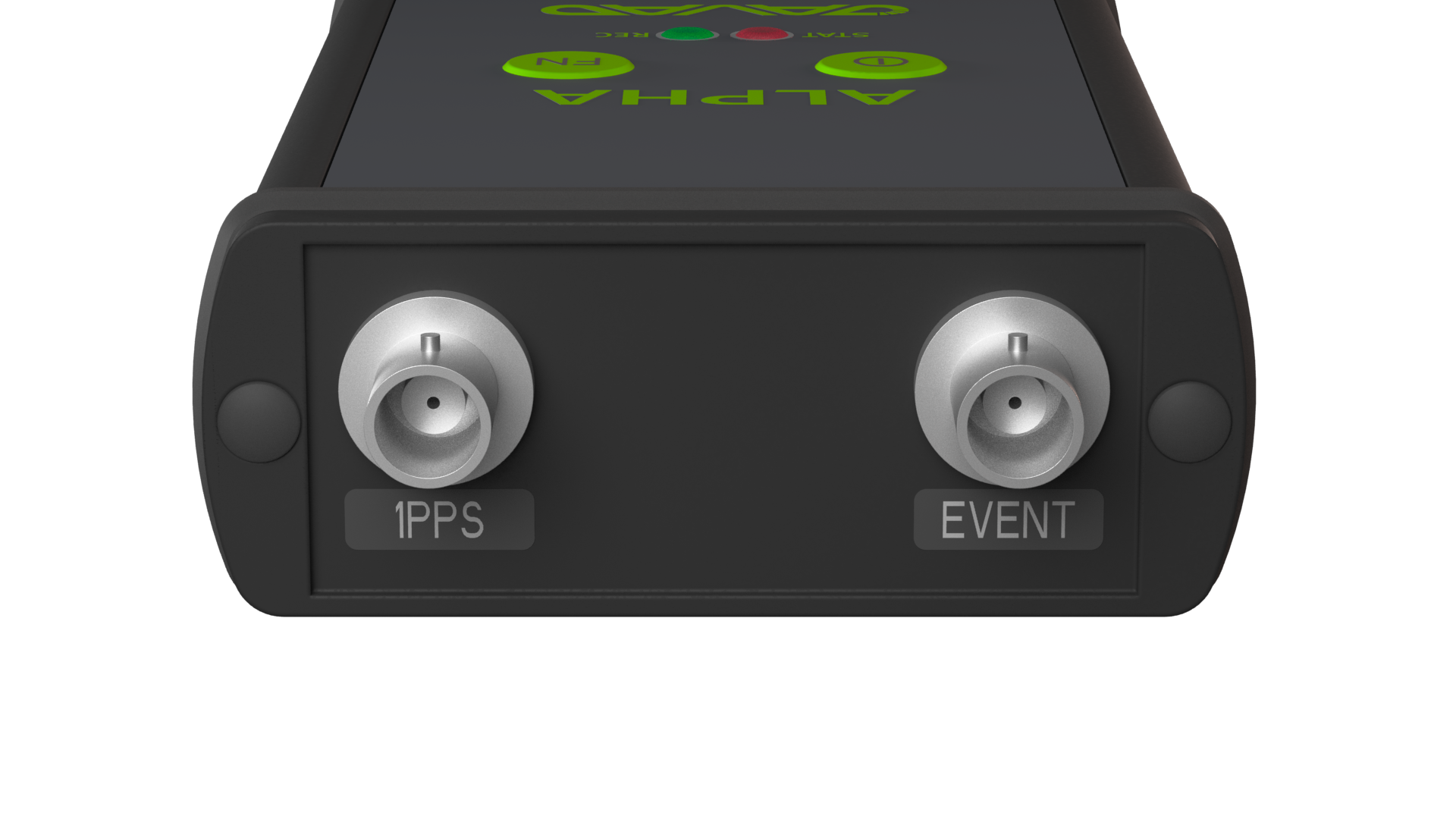

Optional Feature

  • Update Rate 5Hz, 10Hz, 20Hz, 50Hz & 100Hz
  • RTK Rate 1Hz, 5Hz, 10Hz, 20Hz, 50Hz & 100Hz
  • Data Recording up to 256MB
  • Multi-Base Code Differential Rover
  • Code Differential Base
  • Advanced Multipath Reduction
  • In-Band Interference Rejection
  • Event Marker
  • 1 PPS timing strobe
  • Second RS232 Serial Port (460.8 kbps)
  • USB port (12 Mbps)
  • Internal GSM/GPRS Module
  • Bluetooth® Interface
  • KFK WAAS/EGNOS (SBAS)

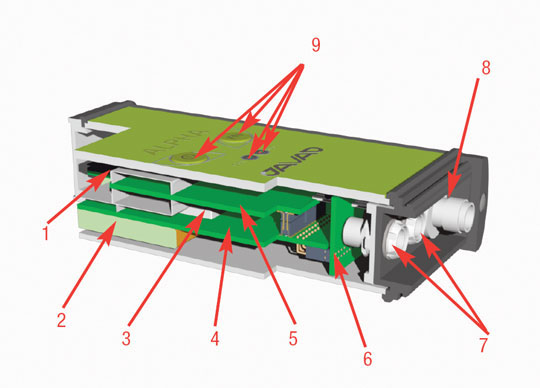

1. SIM Card Holder

2. Rechargeable Li-Ion Battery Pack

3. GSM Modem

4. GNSS Power and Communication Board with on-board SIM-card

5. GNSS Receiver with on-board Memory

6. GNSS Interconnect Board

7. Communication and Power Ports

8. External GNSS Antenna Connector

9. On/Off and Functional Buttons and LEDs
