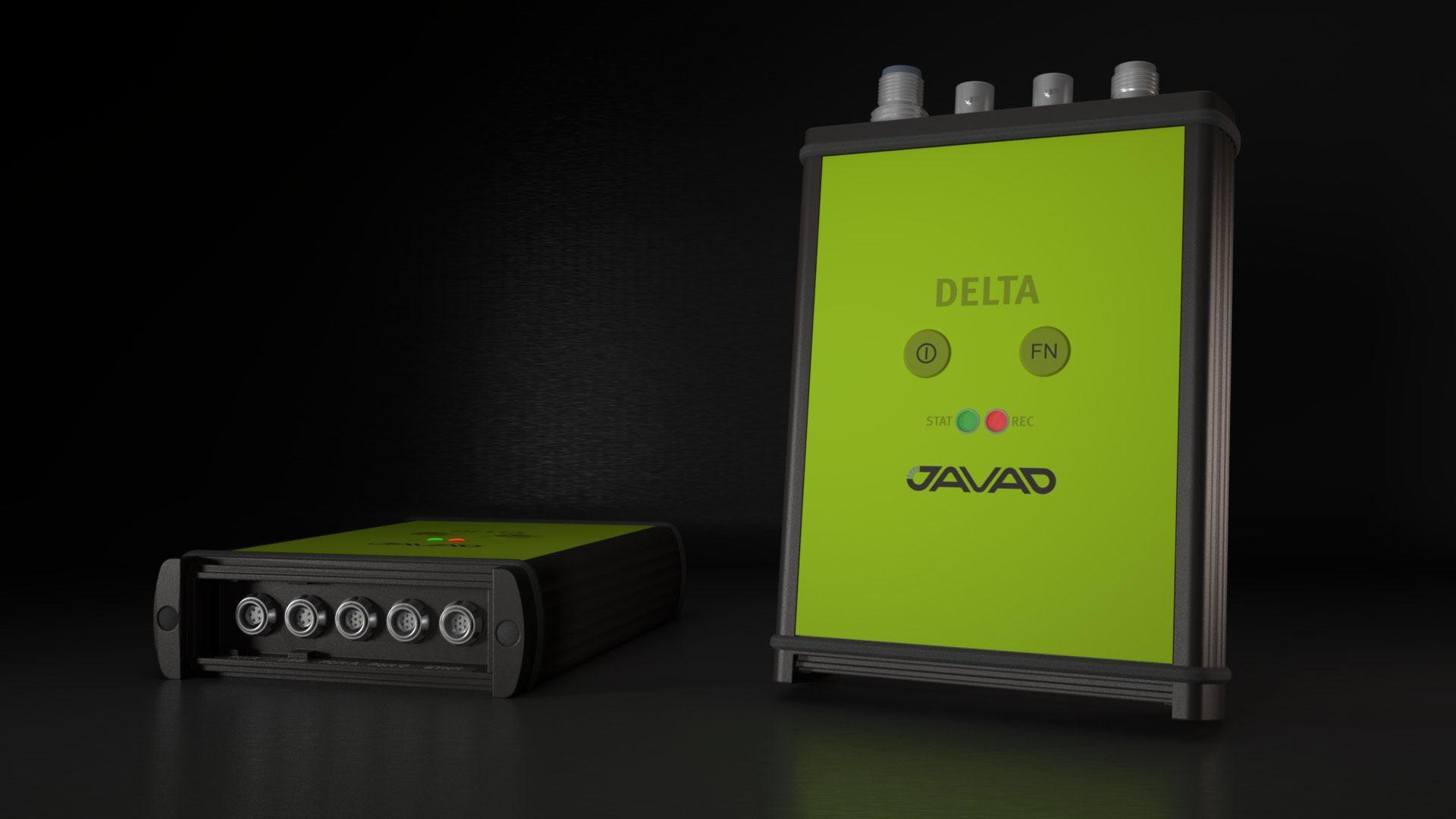

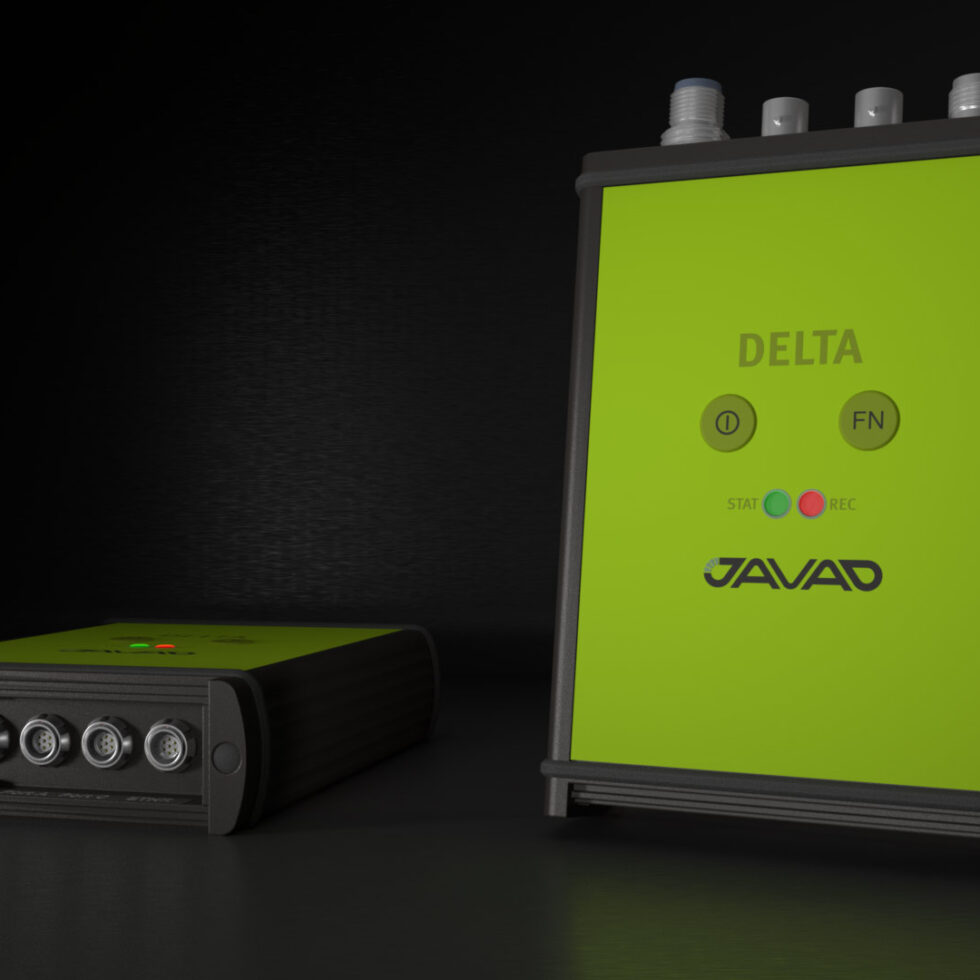

DELTA is a mountable, rugged GNSS enclosure, available with single or dual antennas, MEMS IMU, and standard interfaces. DELTA is designed for any application that uses RTK, Heading, Roll, & Pitch.
Built on the custom ASIC engineered by JAVAD, DELTA tracks all GNSS constellations with patented anti-jamming, anti-spoofing, and multipath reduction technologies for reliability and signal quality.
Use the simple web interface to configure a Continuously Operating Reference Station (CORS) or Portable Base Station, with integrated NTRIP Caster and Server functions to transmit RTCM corrections via TCP or NTRIP.
Key Features
- 874 Channels
- All GNSS Constellations
- Ethernet, USB & Serial Ports
- IRIG Time Codes
- External Frequency Input /Output
- CAN, 1PPS & Event Marker
- 64 GB Memory
| DELTA-3S | DELTA-3SW | DELTA-DI | DELTA-DIW | DELTA-QM |
|---|---|---|---|---|
| Download Datasheet Contact Us |
Download Datasheet Contact Us |
Download Datasheet Contact Us |
Download Datasheet Contact Us |
Download Datasheet Contact Us |
| Standard (Option A) | Standard (Option A) | Standard (Option A) | Standard (Option A) | Standard (Option A) |
| 1x GNSS Input | 1x GNSS Input | 2x GNSS Input | 2x GNSS Input | 4x GNSS Inputs |
| 1x PWR | 2x PWR | 1x PWR | 2x PWR | 1x PWR |
| 1x USB Host/Device | 1x USB Host/Device | 1x USB Host/Device | 1x USB Host/Device | 1x USB |
| 1x RS232 Serial A Port | 1x RS232 Serial A Port | 1x RS232 Serial A Port | 1x RS232 Serial A Port | 1x RS232 Serial A Port |
| 1x RS232/RS422 Serial C Port | 1x RS232/RS422 Serial C Port | 1x RS232/RS422 Serial C Port | 1x RS232/RS422 Serial C Port | 1x RS232/RS422 Serial C Port |
| 1x Ethernet | 1x Ethernet | 1x Ethernet | 1x Ethernet | 1x Ethernet |
| – | 1x RS-232/RS-422 Serial Port D / CAN / PWR EXT | – | 1x RS-232/RS-422 Serial Port D / CAN / PWR EXT | – |
| – | 1x Bluetooth | – | 1x Bluetooth | – |
| – | 1x Wi-Fi | – | 1x Wi-Fi | – |
| Option B | Option B | |||
| 1x 1PPS | – | 1x 1PPS | – | – |
| 1x Event Marker | – | 1x Event Marker | – | – |
| 1x Ext. Frequency In/Out | – | – | – | – |
| Option C | Option C | Option C | Option C | |
| 1x 1PPS | 2x 1PPS | 1x 1PPS | 2x 1PPS | – |
| 1x Event Marker | 2x Event Marker | 2x Event Marker | – | |
| 1x RS-232/RS-422 Serial Port D / CAN / PWR EXT | – | 1x RS-232/RS-422 Serial Port D / CAN / PWR EXT | – | – |
| – | 1x IRIG | – | 1x IRIG | – |
| – | 1x Ext. Frequency In/Out | – | – | – |
