DELTA-3S

DELTA-3S
High-Precision GNSS Enclosure

New DELTA, with 3rd-Gen TRIUMPH

874 GNSS Channels, QZSS L6

DELTA-3S is a powerful and reliable receiver built on the latest-generation TRIUMPH technology from JAVAD.

874 channels and the latest anti-jamming, anti-spoofing, and multipath-reduction technologies put DELTA-3S ahead of the competition.

Designed for High-Precision Applications

  • Navigation
  • Post-processing receiver
  • Continuously Operating Reference Station (CORS)
  • Portable RTK base station
  • Survey and geodynamics
  • Machine and traffic control
  • Aerogeophysics
  • Collecting information for scientific studies
  • And more…

Three configurations to meet your needs

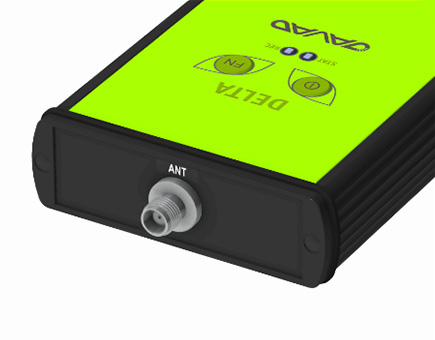

Delta-3S Option A

Option A
Reference Station

Back panel configuration:

  • GNSS Antenna

BUY OPTION A

Delta-3S Option B

Option B
General Purpose

Back panel configuration:

  • GNSS Antenna
  • Event
  • 1PPS
  • Ext. Frequency I/O

BUY OPTION B

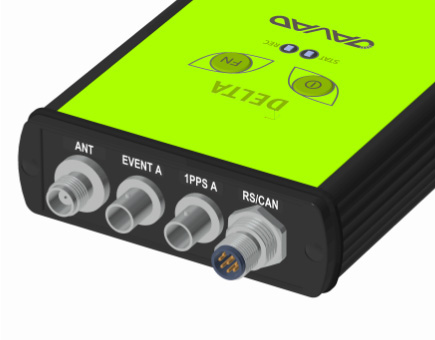

Delta-3S Option C

Option C
Mobile Applications

Back panel configuration:

  • GNSS Antenna
  • Event
  • 1PPS
  • Serial Port D / CAN

BUY OPTION C

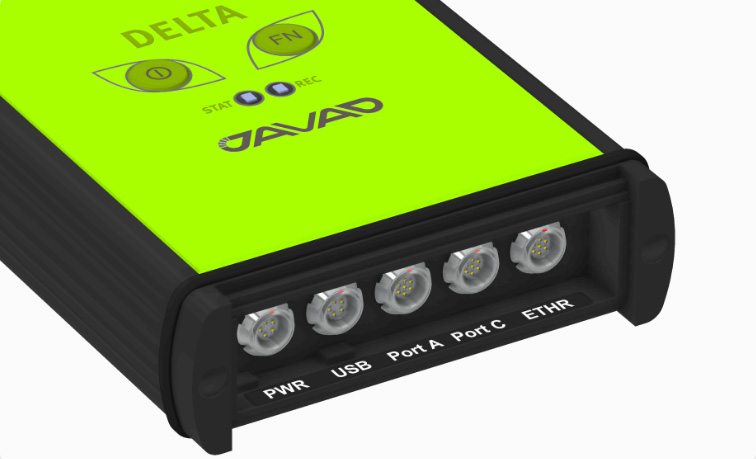

Delta-3S Front View

Standard Features

All configurations come standard with the following front panel ports:

  • Power
  • USB
  • 2x Serial Ports
  • Ethernet

More Details

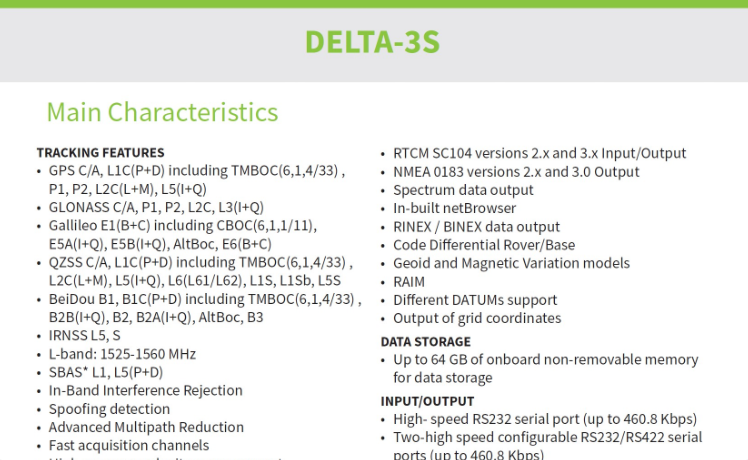

Full details and specifications can be found in the DELTA-3S datasheet below. Our sales team is ready to answer any further questions you may have about how DELTA-3S can fit your needs.

DOWNLOAD DATASHEET

CONTACT SALES

Delta-3S Specs
Build Out Your Own RTN

Build Out Your Own RTN

DELTA-3S can serve as the basis of your own personal RTN. Transmit via TCP or NTRIP and utilize our free NetView and NetHub software to manage the receivers.

JAVAD receivers are already used by happy customers in RTNs around the world →

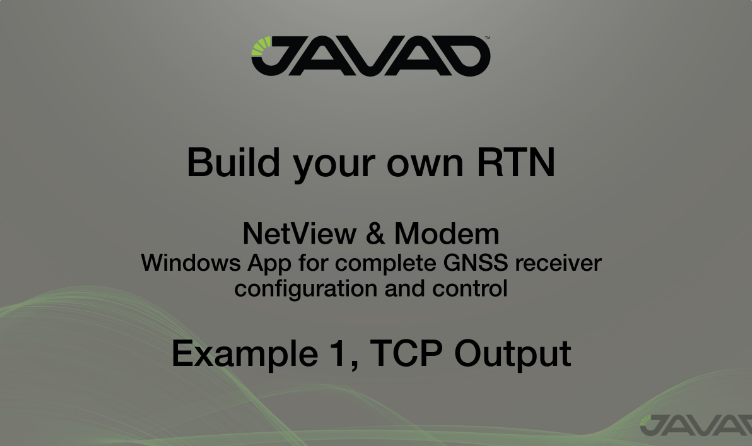

We explored how to configure your own RTN in a recent Virtual Workshop.

DELTA-3S VIRTUAL WORKSHOP

TRIUMPH-3 Inside

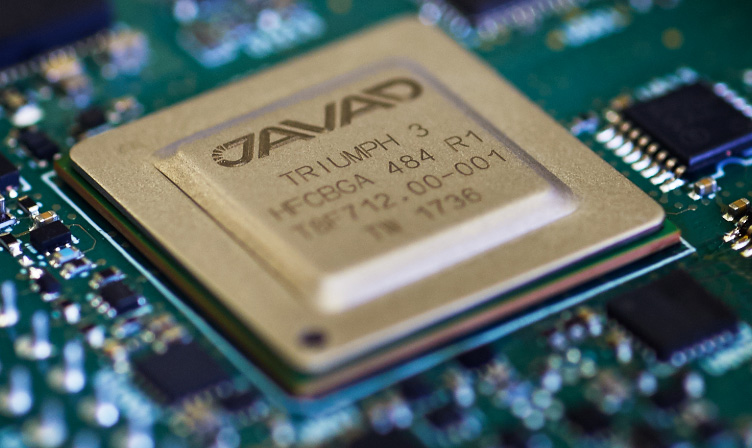

Delta-3S is powered by the 3rd generation of JAVAD's unparalleled custom-designed TRIUMPH ASIC.

874 Channels, improved Fast Acquisition, Anti-Jam filters, and many other features are built into this smaller package that uses ~55% of the power of the prior generation!


SEE MORE ABOUT OUR CUSTOM ASIC
